A Practical, Hands-On Introduction to Brain-Computer Interfaces

This post is a companion to the Brain Computer Interface (BM074IU) course at the Biomedical Engineering Department, International University – Vietnam National University, HCMC. All experiments were conducted using a low-cost, portable EEG device.

All code and data are available on GitHub: qnguy3n/ml-for-bci

What is a Brain-Computer Interface?

A Brain-Computer Interface (BCI) is a system that creates a direct communication pathway between the brain and an external device — no muscles involved. You think, and the machine responds.

BCIs work by recording electrical activity from the brain (EEG), processing the signals, and translating patterns into commands. Applications range from assistive technology for paralyzed patients to gaming and neurofeedback.

In this post, we walk through two real experiments from scratch:

1. Alpha waves — detecting open vs. closed eyes
2. SSVEP — controlling a device by looking at flickering stimuli

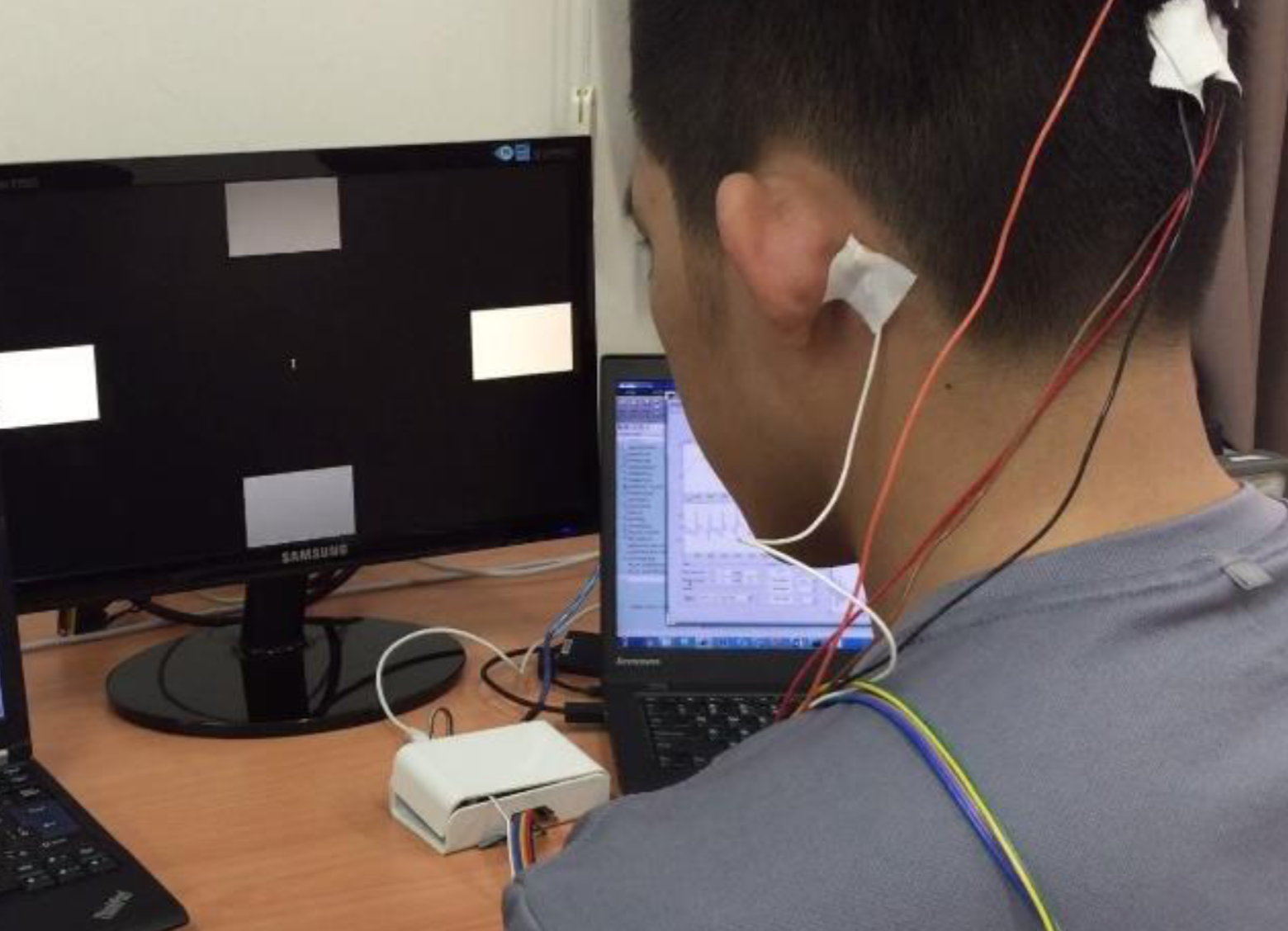

The Hardware: WEEG

Both experiments use WEEG, a portable, low-cost, 4-bit 8-channel EEG recording system. It records EEG in two differential channels at a sampling rate of 250 Hz.

Electrodes are placed on the scalp following the International 10-20 Electrode Placement System — the standard coordinate system used in EEG research worldwide.

For both experiments, the electrode configuration is:

Occipital electrodes (O1, O2, Oz) are chosen because they sit over the visual cortex — the brain region most active during visual processing.

Experiment 1: Alpha Waves (Open and Closed Eyes)

Background

Alpha waves are neural oscillations in the 8–12 Hz frequency band. A well-established finding in neuroscience is that alpha power increases when you close your eyes and decreases when you open them. This makes the open/close eye paradigm one of the simplest, most reliable BCI experiments you can run.

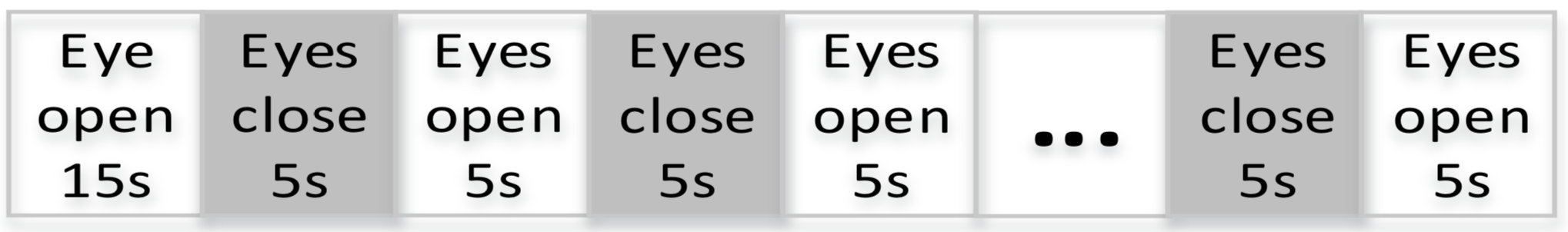

Protocol

• The subject (23-year-old, voluntary) sits relaxed on a chair.
• Phase 1: Eyes open for 15 seconds (baseline).
• Phase 2: Alternates between eyes closed for 5s and eyes open for 5s per trial.
• Each run has at least 5 trials; 5 runs total per session.

Signal Processing

Step 1 — Load and Visualize

addpath '../../data/test alpha 5s'
addpath '../../tools/spectral'

ALLEEG = load('5sopen_close.mat').ALLEEG;   % EEGLAB format
sig = ALLEEG.data;

figure; plot(sig)

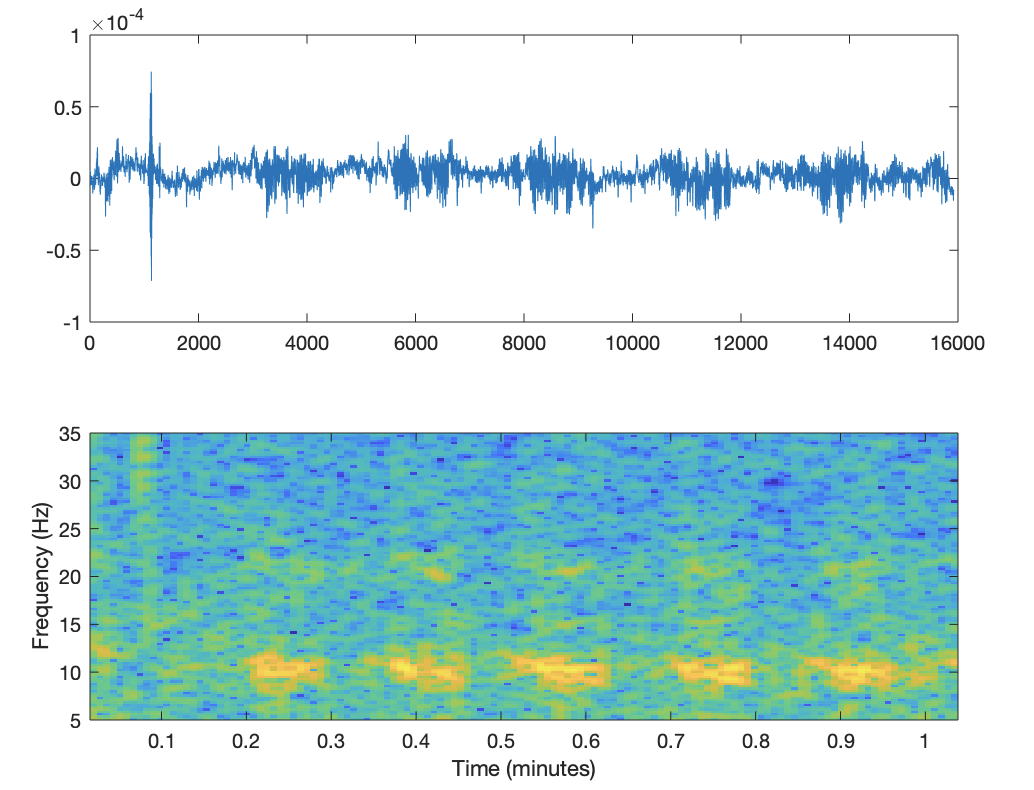

Tip: The first few hundred samples are usually contaminated by movement artifacts from putting on the headset. Skip them.

start = 700;  % skip first ~2.8 seconds
subplot(2,1,1), plot(sig(start:end))
subplot(2,1,2), plot_spectrogram(sig, start, 1, gca)
colormap(jet(256));

Step 2 — Isolate Events

events = ALLEEG.event;
Fs     = ALLEEG.srate;     % 250 Hz
duration = Fs * 5;         % 5-second window

event1 = events(1).latency;  % odd indices = closed, even = open

closed_sample = sig(event1:(event1 + duration));
open_sample   = sig((event1 - duration):event1);

figure;
subplot(2,1,1), plot(closed_sample), title('Eyes closed')
subplot(2,1,2), plot(open_sample),   title('Eyes open')

Step 3 — Spectral Analysis

figure; plotFFT(closed_sample, Fs, gca);

You will see a clear peak around 8–12 Hz in the closed-eye spectrum — this is your alpha wave signature.

Feature Extraction

For classification, we extract two features from each 1-second window:

• Feature 1: Maximum spectral power in the 8–13 Hz band
• Feature 2: Signal-to-noise ratio (SNR) in the 8–13 Hz band

n_samples  = 100;
n_features = 2;
window     = Fs * 1;     % 1-second window
band       = [6, 35];
params.Fs  = Fs;
params.band = band;

class1_feat = zeros(n_samples, n_features);  % closed eyes
class2_feat = zeros(n_samples, n_features);  % open eyes

for i = 1:n_samples
    % Randomly sample a window from a closed-eye event
    event_chosen = events_close(randi(length(events_close) - 2));
    feat_range   = event_chosen:(event_chosen + duration - window);
    feat_start   = feat_range(randi(numel(feat_range)));
    feat_window  = sig(feat_start:(feat_start + window - 1));

    class1_feat(i, :) = feature_extraction(feat_window, params);
end

% Repeat for open eyes (class2_feat) ...

Classification

Once features are extracted, we apply logistic regression (implemented from scratch):

X = cat(1, x1, x2);                             % stack both classes
y = cat(1, zeros(n_samples,1), ones(n_samples,1));

w = rand(n_features, 1);   % initialize weights
b = rand();

% Gradient descent
alpha   = 1;
num_iter = 10;

for iter = 1:num_iter
    z = w' * X' + b;
    g = 1 ./ (1 + exp(-z));    % sigmoid

    J      = -mean(y .* log(g') + (1 - y) .* log(1 - g'));   % cross-entropy loss
    grad_w = (1/n_samples) * X' * (g' - y);
    grad_b = mean(g' - y);

    w = w - alpha * grad_w;
    b = b - alpha * grad_b;
end

Result: The two feature clusters (open vs. closed) are linearly separable, and even a simple logistic regression achieves high accuracy.

Experiment 2: SSVEP

Background

Steady-State Visual Evoked Potentials (SSVEP) are another powerful BCI paradigm. When you look at a flickering stimulus at a fixed frequency (e.g., 10 Hz), your visual cortex resonates at that exact frequency — producing a measurable peak in the EEG spectrum.

By presenting multiple stimuli flickering at different frequencies simultaneously, a user can “select” a target simply by looking at it. No training required.

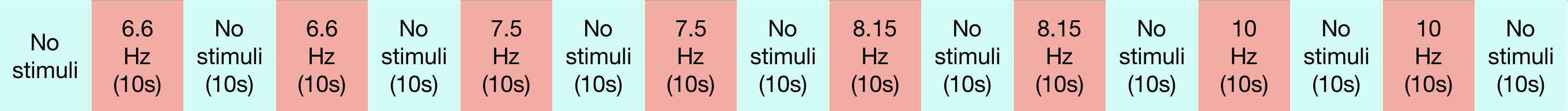

Protocol

• Subject (26-year-old) sits and stares at a flickering LCD screen.
• Stimuli alternate between stimulus on (10s) and off (10s) for four trials per run.
• Each trial uses one of four target frequencies: 6.6 Hz, 7.5 Hz, 8.75 Hz, 10 Hz.
• The subject looks at each frequency for its trial in order.

Same electrode placement as Experiment 1 (Oz, O1, O2 over the visual cortex).

Signal Processing

Pre-processing

Same filtering pipeline as alpha waves:

• High-pass at 0.3 Hz — remove DC drift
• Low-pass at 43 Hz — remove high-frequency noise

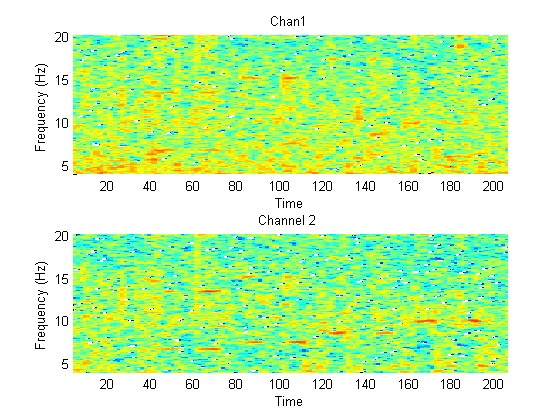

Spectrogram Analysis

% Run ssvep_signal_processing.m
plot_spectrogram(sig, start, 1, gca);
colormap(jet(256));

In the spectrogram, you will see long red stripes (high power) at exactly 6.6, 7.5, 8.75, and 10 Hz — each aligned to the time window when the subject was looking at that frequency. This is the SSVEP response.

Feature Extraction

% feature_extraction.m
% Extract peak power at target frequencies: 6.6, 7.5, 8.75, 10 Hz
% and their harmonics (2x, 3x the fundamental)

The dominant feature is simply which target frequency has the highest peak power in a given window — that frequency is what the user was looking at.

The SSVEP Game

To make this interactive, we built FindPrincess — a simple maze game controlled entirely by SSVEP. Each direction of movement corresponds to one flickering frequency. The subject navigates the maze by looking at the matching stimulus.

6.6 Hz → Left
7.5 Hz → Right
8.75 Hz → Up
10 Hz  → Down

Source code is in tools/SSVEP_BCIGame/FindPrincess.py.

Key Takeaways

Both paradigms demonstrate the core BCI pipeline:

Record → Filter → Extract Features → Classify → Act

Material developed for BM074IU — Brain Computer Interface, International University, VNU-HCMC, Fall 2019.
